Tile Adhesive Diamond
TIGONIS Diamond PU is a two part modified Polyurethane multipurpose thin-set adhesive for fixing all type of tiles and stones including (Composites engineered stone) on interior and exterior surface like Concrete Masonry & Brick Masonry, Cement mortar Beds & Plaster, Metal Substrates, dry wall boards, plywood ,all types of wood Substrate. It has been designed for fixing water Sensitive tiles/ stones on deformable or absorbent/ non-absorbent Substrate. It is highly flexible and water freeze and thermal shock resistant when fully cured.
Modified polyurethane based multipurpose adhesive for stone & tile fixing
|
Performance As per EN12004 (R2T)
| Requirement | Test Result | |
| Initial Shear Adhesion Strength | ≥ 2.0 N/mm2 | ≥ 5.0 N/mm2 |
| Shear Adhesion Strength after water immersion | ≥ 2.0 N/mm2 | ≥ 5.0 N/mm2 |
| Shear Adhesion Strength after thermal shock | ≥ 2.0 N/mm2 | ≥ 5.0 N/mm2 |
| Slip resistance | ≤ 5.0 N/mm | ≤ 0.3mm |
Performance As per IS 15477:2019 ( Type 5 T S2)
| Requirement | Test Result | |
| Tensile Adhesion at Dry Condition at 28 days | ≥ 2.0 N/mm2 | ≥ 2.0 N/mm2 |
| Tensile Adhesion at Wet Condition | – | ≥ 1.5 N/mm2 |
| Shear Adhesion at Dry Condition | ≥ 6.0 N/mm2 | ≥ 7.0 N/mm2 |
| Shear Adhesion at Wet Condition | – | ≥ 5.0 N/mm2 |
| Shear Adhesion at Heat Ageirg | ≥ 3.0 N/mm2 | ≥ 5.0 N/mm2 |
| Deformability (s2) | ≤ 5mm | ≤ 30mm |
NOTE: Test results are indicative as per testing method specified in standard. Test results may vary as per substrate. Site condition & testing machine etc. Actual held performance will depend on installation method and site conditions.

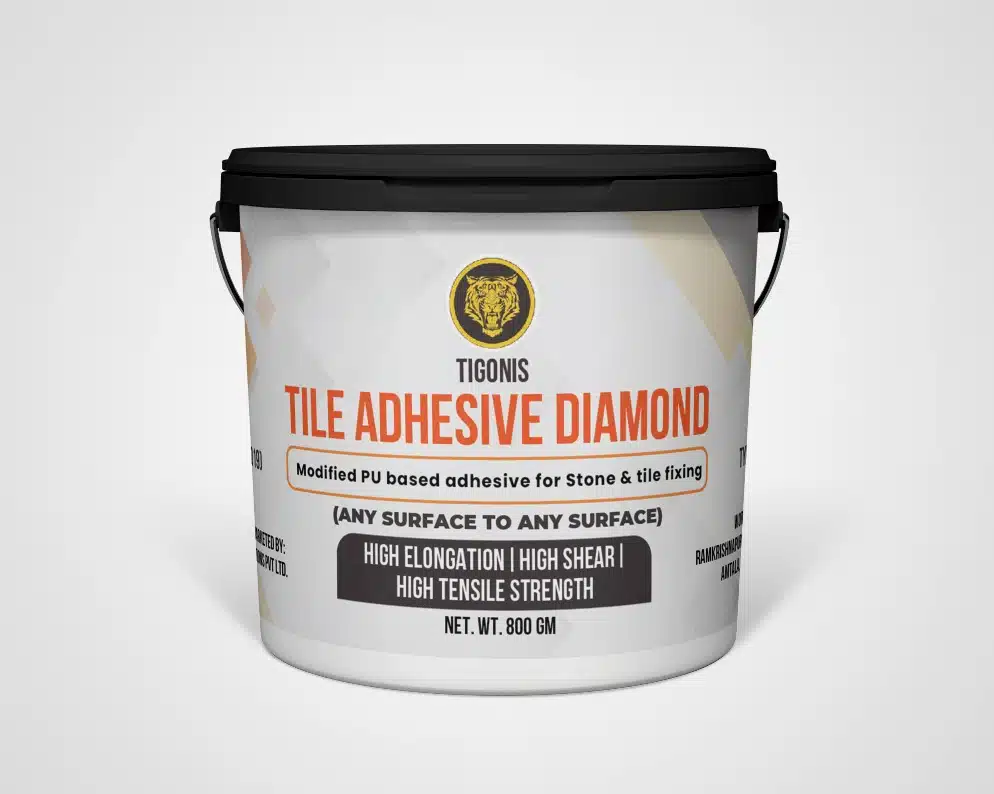

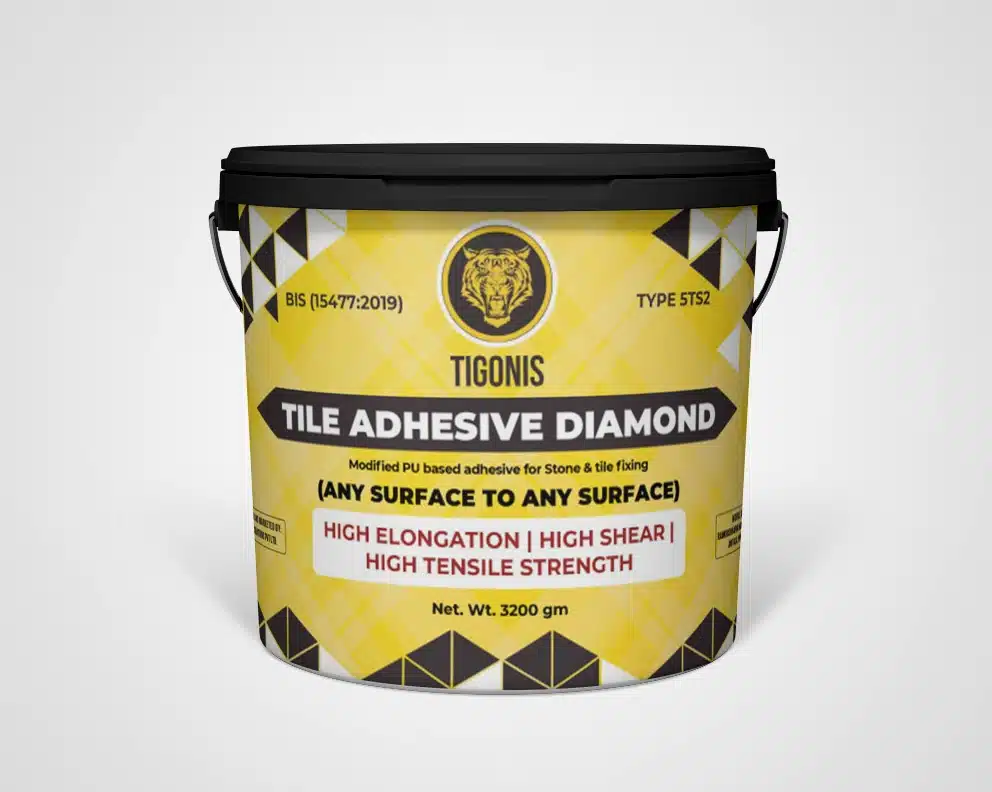

4 Kg Bucket (PART A : 3.200 Kg/ PART B : 0.800 Kg)
Tigonis Diamond Adhesive is prepared by mixing together parts A and part B from the bottom upwards, using a low-rev (=400/ min) halicidalagitator with present mixing of 4:1 of the packs. Pour Part B into the bucket containing Part- A, being careful to mix the two parts uniformly until a smooth paste is obtained.
Tigonis Tile Adhesive – Platinum
Standards: TIGONIS TILE ADHESIVE PLATINUM complies with the adhesion requirements of IS15477:2019 Type 3T.
Tigonis Tile Adhesive – Super
Standards: Tigonis Tile Adhesive Super complies with the adhesion requirements of IS 15477:2019 Type 1
